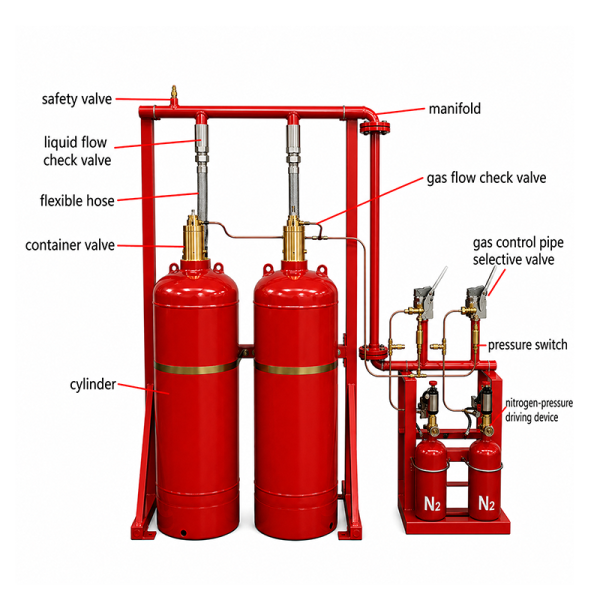

Novec 1230 (FK-5-1-12) Pipe Network Automatic Fire Suppression System
Novec 1230 (FK-5-1-12) pipe network automatic fire suppression system is a clean agent fire protection solution using an eco-friendly fluorinated ketone extinguishing agent. It is specifically designed to protect high-value commercial assets and critical equipment, offering fast fire suppression, zero residue, and complete safety for personnel and property.
| specification |
Technical Parameter |
| Filling pressure |
4.2Mpa |
5.6Mpa |
| Scale of Protective region for one zone |
area:max single-zone is 800m² volume: max single-zone is 3600m³ |
| Spraying time |
≤10s |
| Filling density |
≤950kg/m3 |
≤1080kg/m3 |
| power |
DC24V/1.6A |
|
Nitrogen Pressure of Driving De
vice
|
6.0±1.0Mpa(20℃) |
|
Condition of reserving room for
container
|
temperature: -10~50℃, relative humidity: ≤97% |
| max working pressure |
5.3Mpa |
8.0Mpa |
| min working pressure |
4.2Mpa |
4.6Mpa |
Typical Applications
This system is widely used in the following commercial and industrial environments:
Data Centers & Server Rooms
Protects IT equipment with no residue after discharge, ensuring business continuity.
Telecommunications Facilities
Ideal for base stations, switching rooms, and other high sensitivity electrical environments.
Banks & Financial Institutions
Safeguards vaults, trading systems, and important archives.
Healthcare Facilities
Suitable for MRI rooms, operating theaters, and pharmaceutical storage areas.
Museums, Art Galleries & Libraries
The clean agent causes no corrosion or damage to artwork, artifacts, or paper documents.
Industrial Control Rooms & High Value Equipment Areas
Including power plant control rooms, precision manufacturing workshops, and large generator rooms.
Flammable Liquid Storage Areas
Effective for oil depots, chemical plants, and other Class B fire risk zones.
Ship Engine Rooms & Cargo Holds
Designed for enclosed high risk areas in marine vessels.
Key Advantages
Fast Fire Suppression
Complete agent discharge in less than 10 seconds for rapid fire control.
Clean & Residue Free
No cleanup required after discharge, preventing secondary damage to electronics or valuable assets.
Safe for Occupied Areas
Harmless at recommended design concentrations, with an adjustable time delay (approx. 2 minutes) for safe evacuation.
Environmentally Friendly
Zero ODP (Ozone Depletion Potential) and GWP of 1, meeting global environmental standards.
Multi Zone Protection
A single system can protect multiple independent zones using selector valves, significantly reducing overall equipment costs.
Broad Fire Class Coverage
Effective against Class A (solids), Class B (liquids), Class C (gases), and electrical fires.

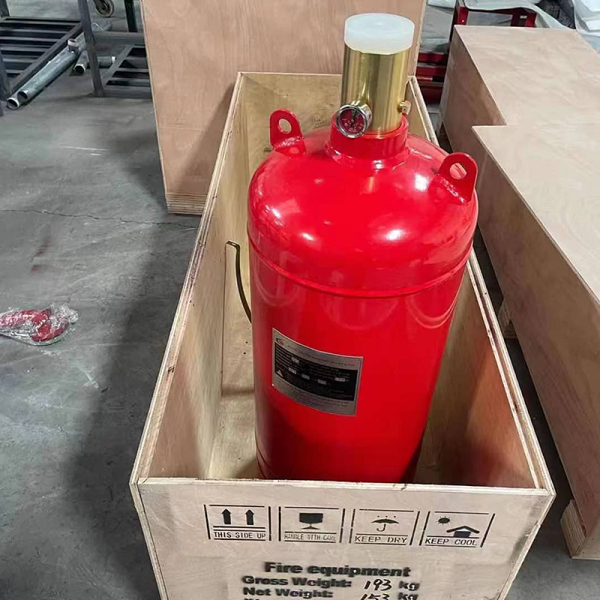

Packaging and Shipping Packaging:
Packaging:
The product will be carefully packaged to ensure safe transportation and proper handling. The packaging materials include: sturdy cardboard boxes, bubble wrap, protective foam padding, and user manual.
Shipping:
We provide global delivery services for the product. The following are the available shipping options:
All goods will be transported by reliable and trustworthy courier companies to ensure timely and safe delivery. After the order is dispatched, customers will receive a tracking number via email.
Special Handling Instructions:
If your goods have special handling requirements, please contact us at least 24 hours before the order is dispatched. We will do our best to meet your needs.
Purchasing Notice
1. If you know little about the volume or area of your warehouse, factory or workshop, such as length, width, height, please be sure to contact us in time. In this way, our engineers can design the specifications and quantity of the product according to your needs.
2. If the required specification parameters are not available in the parameter table, please let us know your requirements and we will provide you with a satisfactory design solution.
3. If you have confirmed our products, please place an order and pay. After that, we will arrange shipment as soon as possible.
4. If there are any transportation difficulties, please contact us immediately, and we will provide you with a satisfactory solution to save freight as much as possible.
Why Choose Our System
Available in 4.2MPa and 5.6MPa pressure ratings to meet different project requirements.
Constructed with high strength galvanized steel pipes and quality fittings for long term reliability.
Supports single cylinder, multiple cylinder, and multi zone control configurations for flexible installation.
Professional engineering team providing full support from system design and installation to commissioning.
